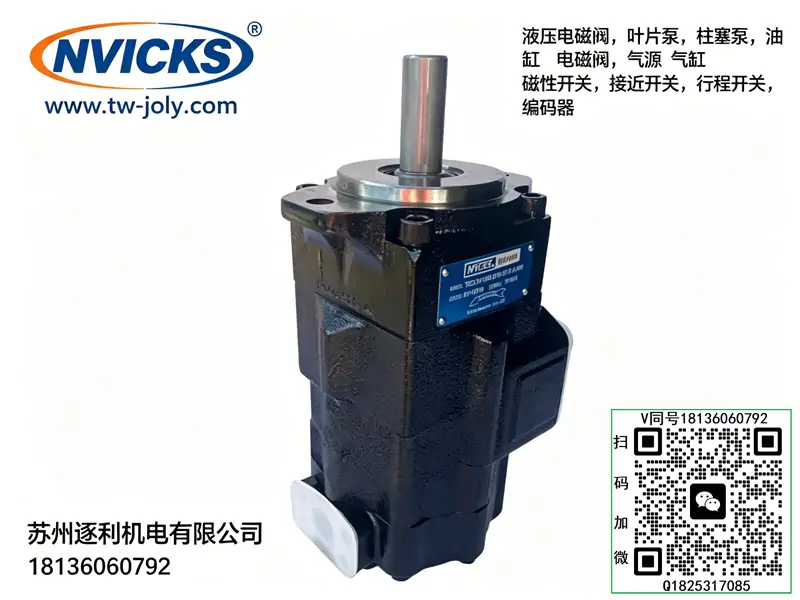

雙聯葉片泵NVICKS葉片油泵2520V/3525V/4535V液壓泵

20V 系列：20V11A-1A22L,20V11A-1A22R,20V11A-1B22R,20V11A-1C22R,20V11A-1D22R,20V12A-1A22R,20V12A-1D22R,20V5A-1C22R,20V5A-1D22R,20V8A-151C22R,20V8A-1A22R,20V8A-1C22L,20V8A-1C22R,20V8A-1D22R

20VQ 系列：20VQ-11A,20VQ11A-1A22R,20VQ11A-1B22R,20VQ-12A,20VQ-14A,20VQ-5A,20VQ5A-1C22R,20VQ5A-1C30,20VQ-8A,20VQ8A-151C22R

2520V 系列：2520V10A10-1AB22R,2520V10A10-1AC22R,2520V10A10-1AD22R,2520V10A11-1AB22R,2520V10A11-1AC22R,2520V10A11-1AD22R,2520V10A12-1AB22R,2520V10A12-1AC22R,2520V10A12-1AD22R,2520V10A14-1AB22R,2520V10A14-1AC22R,2520V10A14-1AD22R,2520V10A2-1AB22R,2520V10A2-1AC22R,2520V10A2-1AD22R,2520V10A3-1AB22R,2520V10A3-1AC22R,2520V10A3-1AD22R,2520V10A4-1AB22R,2520V10A4-1AC22R,2520V10A4-1AD22R,2520V10A5-1AB22R,2520V10A5-1AC22R,2520V10A5-1AD22R,2520V-10A-5-1C22R,2520V10A6-1AB22R,2520V10A6-1AC22R,2520V10A6-1AD22R,2520V10A7-1AB22R,2520V10A7-1AC22R,2520V10A7-1AD22R,2520V10A8-1AB22R,2520V10A8-1AC22R,2520V10A8-1AD22R,2520V10A9-1AB22R,2520V10A9-1AC22R,2520V10A9-1AD22R,2520V12A10-1AB22R,2520V12A10-1AC22R,2520V12A10-1AD22R,2520V-12A10-1C22R,2520V12A11-1AA22R,2520V12A11-1AB22R,2520V12A11-1AC22R,2520V12A11-1AD22R,2520V12A11-1DD22R,2520V12A12-1AB22R,2520V12A12-1AC22R,2520V12A12-1AD22R,2520V-12A12-1C22R,2520V12A14-1AB22R,2520V12A14-1AC22R,2520V12A14-1AD22R,2520V-12A14-1C22R,2520V12A2-1AB22R,2520V12A2-1AC22R,2520V12A2-1AD22R,2520V12A2-1BB22R,2520V12A2-1CA22R,2520V12A3-1AB22R,2520V12A3-1AC22R,2520V12A3-1AD22R,2520V12A4-1AB22R,2520V12A4-1AC22R,2520V12A4-1AD22R,2520V12A5-1AB22R,2520V12A5-1AC22R,2520V12A5-1AD22R,2520V-12A-5-1C22R,2520V12A5-1DD22R,2520V12A6-1AB22R,2520V12A6-1AC22R,2520V12A6-1AD22R,2520V12A7-1AB22R,2520V12A7-1AC22R,2520V12A7-1AD22R,2520V12A8-1AA22R,2520V12A8-1AB22R,2520V12A8-1AC22R,2520V12A8-1AD22R,2520V-12A8-1C22R,2520V12A8-1CC22R,2520V12A8-1DD22R,2520V12A9-1AB22R,2520V12A9-1AC22R,2520V12A9-1AD22R,2520V14A10-1AB22R,2520V14A10-1AC22R,2520V14A10-1AD22R,2520V-14A-10-1C22R,2520V14A11-1AA22R,2520V14A11-1AB22R,2520V14A11-1AC22R,2520V14A11-1AD22R,2520V14A11-1BB22R,2520V14A11-1CC22R,2520V14A11-1DD22R,2520V14A12-1AA22R,2520V14A12-1AB22R,2520V14A12-1AC22R,2520V14A12-1AD22R,2520V-14A-12-1C22R,2520V14A14-1AB22R,2520V14A14-1AC22R,2520V14A14-1AD22R,2520V-14A-14-1C22R,2520V14A2-1AB22R,2520V14A2-1AC22R,2520V14A2-1AD22R,2520V14A3-1AB22R,2520V14A3-1AC22R,2520V14A3-1AD22R,2520V14A4-1AB22R,2520V14A4-1AC22R,2520V14A4-1AD22R,2520V14A5-1AB22R,2520V14A5-1AC22R,2520V14A5-1AD22R,2520V14A5-1BB22R,2520V-14A-5-1C22R,2520V14A5-1CC22R,2520V14A5-1DD22R,2520V14A6-1AB22R,2520V14A6-1AC22R,2520V14A6-1AD22R,2520V14A7-1AB22R,2520V14A7-1AC22R,2520V14A7-1AD22R,2520V14A8-1AB22R,2520V14A8-1AC22R,2520V14A8-1AD22R,2520V14A8-1BB22R,2520V-14A-8-1C22R,2520V14A8-1CC22R,2520V14A8-1DD22R,2520V14A9-1AB22R,2520V14A9-1AC22R,2520V14A9-1AD22R,2520V15A10-1AB22R,2520V15A10-1AC22R,2520V15A10-1AD22R,2520V15A11-1AB22R,2520V15A11-1AC22R,2520V15A11-1AD22R,2520V15A12-1AB22R,2520V15A12-1AC22R,2520V15A12-1AD22R,2520V15A14-1AB22R,2520V15A14-1AC22R,2520V15A14-1AD22R,2520V15A2-1AB22R,2520V15A2-1AC22R,2520V15A2-1AD22R,2520V15A3-1AB22R,2520V15A3-1AC22R,2520V15A3-1AD22R,2520V15A4-1AB22R,2520V15A4-1AC22R,2520V15A4-1AD22R,2520V15A5-1AB22R,2520V15A5-1AC22R,2520V15A5-1AD22R,2520V15A6-1AB22R,2520V15A6-1AC22R,2520V15A6-1AD22R,2520V15A7-1AB22R,2520V15A7-1AC22R,2520V15A7-1AD22R,2520V15A8-1AB22R,2520V15A8-1AC22R,2520V15A8-1AD22R,2520V15A9-1AB22R,2520V15A9-1AC22R,2520V15A9-1AD22R,2520V17A10-1AB22R,2520V17A10-1AC22R,2520V17A10-1AD22R,2520V-17A-10-1C22R,2520V17A11-1AB22R,2520V17A11-1AC22R,2520V17A11-1AD22R,2520V17A11-1DD22R,2520V17A11-86DD22R,2520V17A12-1AB22R,2520V17A12-1AC22R,2520V17A12-1AD22R,2520V-17A-121C22R,2520V17A14-1AA22R,2520V17A14-1AB22R,2520V17A14-1AC22R,2520V17A14-1AD22R,2520V-17A-14-1C22R,2520V17A14-1CB22R,2520V17A14-1CC22R,2520V17A2-1AB22R,2520V17A2-1AC22R,2520V17A2-1AD22R,2520V17A3-1AB22R,2520V17A3-1AC22R,2520V17A3-1AD22R,2520V17A4-1AB22R,2520V17A4-1AC22R,2520V17A4-1AD22R,2520V17A5-1AA-22R,2520V17A5-1AB22R,2520V17A5-1AC22R,2520V17A5-1AD22R,2520V17A5-1BB22R,2520V-17A-5-1C22R,2520V17A5-1CC22R,2520V17A5-1DD22R,2520V17A6-1AB22R,2520V17A6-1AC22R,2520V17A6-1AD22R,2520V17A7-1AB22R,2520V17A7-1AC22R,2520V17A7-1AD22R,2520V17A8-1AA22R,2520V17A8-1AB22R,2520V17A8-1AC22R,2520V17A8-1AD22R,2520V17A8-1BB22R,2520V-17A-8-1C22R,2520V17A8-1CB22R,2520V17A8-1CC22L,2520V17A8-1CC22R,2520V17A9-1AB22R,2520V17A9-1AC22R,2520V17A9-1AD22R,2520V19A10-1AB22R,2520V19A10-1AC22R,2520V19A10-1AD22R,2520V19A11-1AB22R,2520V19A11-1AC22R,2520V19A11-1AD22R,2520V19A12-1AB22R,2520V19A12-1AC22R,2520V19A12-1AD22R,2520V19A14-1AB22R,2520V19A14-1AC22R,2520V19A14-1AD22R,2520V19A2-1AB22R,2520V19A2-1AC22R,2520V19A2-1AD22R,2520V19A3-1AB22R,2520V19A3-1AC22R,2520V19A3-1AD22R,2520V19A4-1AB22R,2520V19A4-1AC22R,2520V19A4-1AD22R,2520V19A5-1AB22R,2520V19A5-1AC22R,2520V19A5-1AD22R,2520V19A6-1AB22R,2520V19A6-1AC22R,2520V19A6-1AD22R,2520V19A7-1AB22R,2520V19A7-1AC22R,2520V19A7-1AD22R,2520V19A8-1AB22R,2520V19A8-1AC22R,2520V19A8-1AD22R,2520V19A9-1AB22R,2520V19A9-1AC22R,2520V19A9-1AD22R,2520V21A10-1AB22R,2520V21A10-1AC22R,2520V21A10-1AD22R,2520V-21A-10-1C22R,2520V21A11-1AA22R,2520V21A11-1AB22R,2520V21A11-1AC22R,2520V21A11-1AD22R,2520V21A11-1BB22R,2520V21A11-1CC22R,2520V21A11-1DA22R,2520V21A12-1AA22R,2520V21A12-1AB22R,2520V21A12-1AC22R,2520V21A12-1AD22R,2520V21A12-1BB22R,2520V-21A-12-1C22R,2520V21A12-1CB22R,2520V21A12-1CC22R,2520V21A12-1DD22R,2520V21A14-1AA22R,2520V21A14-1AB22R,2520V21A14-1AC22R,2520V21A14-1AD22R,2520V-21A-14-1C22R,2520V21A14-1CB22R,2520V21A14-1DD22R,2520V21A2-1AA22R,2520V21A2-1AB22R,2520V21A2-1AC22R,2520V21A2-1AD22R,2520V21A2-1CC22R,2520V21A3-1AB22R,2520V21A3-1AC22R,2520V21A3-1AD22R,2520V21A4-1AB22R,2520V21A4-1AC22R,2520V21A4-1AD22R,2520V21A5-1AA22R,2520V21A5-1AB22R,2520V21A5-1AC22R,2520V21A5-1AD22R,2520V-21A-5-1C22R,2520V21A5-1CC22R,2520V21A5-1DD22R,2520V21A6-1AB22R,2520V21A6-1AC22R,2520V21A6-1AD22R,2520V21A7-1AB22R,2520V21A7-1AC22R,2520V21A7-1AD22R,2520V21A8-1AA22R,2520V21A8-1AB22R,2520V21A8-1AC22R,2520V21A8-1AD22R,2520V21A8-1BB22R,2520V-21A-8-1C22R,2520V21A8-1CC22R,2520V21A8-1DD22R,2520V21A9-1AB22R,2520V21A9-1AC22R,2520V21A9-1AD22R

2520VQ 系列：2520VQ-12A11,2520VQ12A11-1AA22R,2520VQ12A11-1DD22R,2520VQ12A2-1BB22R,2520VQ-12A5,2520VQ12A5-1DD22R,2520VQ-12A8,2520VQ12A8-1AA22R,2520VQ12A8-1CC22R,2520VQ12A8-1DD22R,2520VQ-14A11,2520VQ14A11-1DD22R,2520VQ-14A12,2520VQ14A12-1AA22R,2520VQ-14A5,2520VQ14A5-1DD22R,2520VQ-14A8,2520VQ14A8-1CC22R,2520VQ-17A11,2520VQ17A11-1DD22R,2520VQ17A11-86DD22R,2520VQ-17A12,2520VQ-17A14,2520VQ17A14-1AA22R,2520VQ-17A14-1CC-10R,2520VQ-17A5,2520VQ17A5-1AA-22R,2520VQ17A5-1AB22R,2520VQ-17A8,2520VQ17A8-1AA22R,2520VQ17A8-1CB22R,2520VQ17A8-1CC22L,2520VQ-19A12-1CC-10R,2520VQ-19A14-1CC-10R,2520VQ-21A11,2520VQ21A11-1AA22R,2520VQ-21A12,2520VQ21A12-1AA22R,2520VQ21A12-1BB22R,2520VQ-21A14,2520VQ21A14-1AD22R,2520VQ-21A5,2520VQ21A5-1AA22R,2520VQ21A5-1CC22R,2520VQ-21A8,2520VQ21A8-1CC22R,2520VQ21A8-1DD22R,2520VQH17A12-1DD20R

2525V 系列：2525V-10A-10-1C22R,2525V-10A-12-1C22R,2525V-10A-14-1C22R,2525V-10A-17-1C22R,2525V-10A-21-1C22R,2525V-12A-10-1C22R,2525V-12A-12-1C22R,2525V-12A-14-1C22R,2525V-12A-17-1C22R,2525V-12A-21-1C22R,2525V-14A-10-1C22R,2525V-14A-12-1C22R,2525V-14A-14-1C22R,2525V-14A-17-1C22R,2525V-14A-21-1C22R,2525V-17A-10-1C22R,2525V-17A-12-1C22R,2525V-17A-14-1C22R,2525V-17A-17-1C22R,2525V-17A-21-1C22R,2525V-21A-10-1C22R,2525V-21A-12-1C22R,2525V-21A-14-1C22R,2525V-21A-17-1C22R,2525V21A17-86DA22R,2525V-21A-21-1C22R

2525VQ 系列：2525VQ-10A-10-1C22R,2525VQ-10A-21-1C22R,2525VQ-12A-10-1C22R,2525VQ-12A-21-1C22R,2525VQ-14A-10-1C22R,2525VQ-14A-21-1C22R,2525VQ-17A-10-1C22R,2525VQ-17A-21-1C22R,2525VQ-21A-21-1C22R

25V 系列：25V10A-1A22R,25V10A-1C22R,25V12A-11A22R,25V12A-1B22R,25V12A-1C22R,25V12A-1D22R,25V14A-1A22R,25V14A-1B22L,25V14A-1B22R,25V14A-1C22R,25V14A-1D22R,25V14AF-1C22R,25V14AM-1D22R,25V17A-11B22L,25V17A-1A22L,25V17A-1A22R,25V17A-1B22R,25V17A-1C22R,25V17A-1D22R,25V21A-1A22L,25V21A-1A22R,25V21A-1B22R,25V21A-1C22R,25V21A-1D22R

25VQ 系列：25VQ-12A,25VQ12A-1B22R,25VQ-14A,25VQ-17A,25VQ17A-1A22R,25VQ17A-1B22R,25VQ17A-1C22R,25VQ-21A

3520V 系列：3520V21A10-1AA22R,3520V21A10-1BA22R,3520V21A10-1BB22R,3520V21A10-1BC22R,3520V21A10-1BD22R,3520V21A11-1AA22R,3520V21A11-1BA22R,3520V21A11-1BB22R,3520V21A11-1BC22R,3520V21A11-1BD22R,3520V21A12-1AA22R,3520V21A12-1BA22R,3520V21A12-1BB22R,3520V21A12-1BC22R,3520V21A12-1BD22R,3520V21A14-1AA22R,3520V21A14-1BA22R,3520V21A14-1BB22R,3520V21A14-1BC22R,3520V21A14-1BD22R,3520V21A2-1AA22R,3520V21A2-1BA22R,3520V21A2-1BB22R,3520V21A2-1BC22R,3520V21A2-1BD22R,3520V21A3-1AA22R,3520V21A3-1BA22R,3520V21A3-1BB22R,3520V21A3-1BC22R,3520V21A3-1BD22R,3520V21A4-1AA22R,3520V21A4-1BA22R,3520V21A4-1BB22R,3520V21A4-1BC22R,3520V21A4-1BD22R,3520V21A5-1AA22R,3520V21A5-1BA22R,3520V21A5-1BB22R,3520V21A5-1BC22R,3520V21A5-1BD22R,3520V21A6-1AA22R,3520V21A6-1BA22R,3520V21A6-1BB22R,3520V21A6-1BC22R,3520V21A6-1BD22R,3520V21A7-1AA22R,3520V21A7-1BA22R,3520V21A7-1BB22R,3520V21A7-1BC22R,3520V21A7-1BD22R,3520V21A8-1AA22R,3520V21A8-1BA22R,3520V21A8-1BB22R,3520V21A8-1BC22R,3520V21A8-1BD22R,3520V21A9-1AA22R,3520V21A9-1BA22R,3520V21A9-1BB22R,3520V21A9-1BC22R,3520V21A9-1BD22R,3520V25A10-1AA22R,3520V25A10-1BA22R,3520V25A10-1BB22R,3520V25A10-1BC22R,3520V25A10-1BD22R,3520V-25A-10-1C22R,3520V25A11-1AA22R,3520V25A11-1BA22R,3520V25A11-1BB22R,3520V25A11-1BC22R,3520V25A11-1BD22R,3520V-25A-11-1C22R,3520V25A11-86AB22R,3520V25A12-1AA22R,3520V25A12-1BA22R,3520V25A12-1BB22R,3520V25A12-1BC22R,3520V25A12-1BD22R,3520V-25A-12-1C22R,3520V25A12-1CC22R,3520V25A12-1DD22R,3520V25A14-1AA22R,3520V25A14-1BA22R,3520V25A14-1BB22R,3520V25A14-1BC22R,3520V25A14-1BD22R,3520V-25A-14-1C22R,3520V25A2-1AA22R,3520V25A2-1BA22R,3520V25A2-1BB22R,3520V25A2-1BC22R,3520V25A2-1BD22R,3520V25A3-1AA22R,3520V25A3-1BA22R,3520V25A3-1BB22R,3520V25A3-1BC22R,3520V25A3-1BD22R,3520V25A4-1AA22R,3520V25A4-1BA22R,3520V25A4-1BB22R,3520V25A4-1BC22R,3520V25A4-1BD22R,3520V25A5-1AA22R,3520V25A5-1BA22R,3520V25A5-1BB22R,3520V25A5-1BC22R,3520V25A5-1BD22R,3520V-25A-5-1C22R,3520V25A5-1CC22R,3520V25A6-1AA22R,3520V25A6-1BA22R,3520V25A6-1BB22R,3520V25A6-1BC22R,3520V25A6-1BD22R,3520V25A7-1AA22R,3520V25A7-1BA22R,3520V25A7-1BB22R,3520V25A7-1BC22R,3520V25A7-1BD22R,3520V25A8-1AA22R,3520V25A8-1BA22R,3520V25A8-1BB22R,3520V25A8-1BC22R,3520V25A8-1BD22R,3520V-25A-8-1C22R,3520V25A8-86CB22R,3520V25A9-1AA22R,3520V25A9-1BA22R,3520V25A9-1BB22R,3520V25A9-1BC22R,3520V25A9-1BD22R,3520V30A10-1AA22R,3520V30A10-1BA22R,3520V30A10-1BB22R,3520V30A10-1BC22R,3520V30A10-1BD22R,3520V-30A-10-1C22R,3520V30A11-1AA22R,3520V30A11-1BA22R,3520V30A11-1BB22R,3520V30A11-1BC22R,3520V30A11-1BD22R,3520V-30A-11-1C22R,3520V30A11-1CC22R,3520V30A11-86CC22R,3520V30A12-1AA22R,3520V30A12-1AD22R,3520V30A12-1BA22R,3520V30A12-1BB22R,3520V30A12-1BC22R,3520V30A12-1BD22R,3520V-30A-12-1C22R,3520V30A12-1DC22R,3520V30A14-1AA22L,3520V30A14-1AA22R,3520V30A14-1BA22R,3520V30A14-1BB22R,3520V30A14-1BC22R,3520V30A14-1BD22R,3520V-30A-14-1C22R,3520V30A14-1CB22R,3520V30A2-1AA22R,3520V30A2-1BA22R,3520V30A2-1BB22R,3520V30A2-1BC22R,3520V30A2-1BD22R,3520V30A2-1CC22R,3520V30A3-1AA22R,3520V30A3-1BA22R,3520V30A3-1BB22R,3520V30A3-1BC22R,3520V30A3-1BD22R,3520V30A4-1AA22R,3520V30A4-1BA22R,3520V30A4-1BB22R,3520V30A4-1BC22R,3520V30A4-1BD22R,3520V30A5-1AA22R,3520V30A5-1BA22R,3520V30A5-1BB22R,3520V30A5-1BC22R,3520V30A5-1BD22R,3520V-30A-5-1C22R,3520V30A5-1DB22R,3520V30A5-1DC22R,3520V30A6-1AA22R,3520V30A6-1BA22R,3520V30A6-1BB22R,3520V30A6-1BC22R,3520V30A6-1BD22R,3520V30A7-1AA22R,3520V30A7-1BA22R,3520V30A7-1BB22R,3520V30A7-1BC22R,3520V30A7-1BD22R,3520V30A8-1AA22R,3520V30A8-1BA22R,3520V30A8-1BB22R,3520V30A8-1BC22R,3520V30A8-1BD22R,3520V-30A-8-1C22R,3520V30A8-1CB22R,3520V30A8-1CC22R,3520V30A8-1DC22R,3520V30A8-1DD22R,3520V30A9-1AA22R,3520V30A9-1BA22R,3520V30A9-1BB22R,3520V30A9-1BC22R,3520V30A9-1BD22R,3520V32A10-1AA22R,3520V32A10-1BA22R,3520V32A10-1BB22R,3520V32A10-1BC22R,3520V32A10-1BD22R,3520V32A11-1AA22R,3520V32A11-1BA22R,3520V32A11-1BB22R,3520V32A11-1BC22R,3520V32A11-1BD22R,3520V32A12-1AA22R,3520V32A12-1BA22R,3520V32A12-1BB22R,3520V32A12-1BC22R,3520V32A12-1BD22R,3520V32A14-1AA22R,3520V32A14-1BA22R,3520V32A14-1BB22R,3520V32A14-1BC22R,3520V32A14-1BD22R,3520V32A2-1AA22R,3520V32A2-1BA22R,3520V32A2-1BB22R,3520V32A2-1BC22R,3520V32A2-1BD22R,3520V32A3-1AA22R,3520V32A3-1BA22R,3520V32A3-1BB22R,3520V32A3-1BC22R,3520V32A3-1BD22R,3520V32A4-1AA22R,3520V32A4-1BA22R,3520V32A4-1BB22R,3520V32A4-1BC22R,3520V32A4-1BD22R,3520V32A5-1AA22R,3520V32A5-1BA22R,3520V32A5-1BB22R,3520V32A5-1BC22R,3520V32A5-1BD22R,3520V32A6-1AA22R,3520V32A6-1BA22R,3520V32A6-1BB22R,3520V32A6-1BC22R,3520V32A6-1BD22R,3520V32A7-1AA22,3520V32A7-1BA22R,3520V32A7-1BB22R,3520V32A7-1BC22R,3520V32A7-1BD22R,3520V32A8-1AA22R,3520V32A8-1BA22R,3520V32A8-1BB22R,3520V32A8-1BC22R,3520V32A8-1BD22R,3520V32A9-1AA22R,3520V32A9-1BA22R,3520V32A9-1BB22R,3520V32A9-1BC22R,3520V32A9-1BD22R,3520V35A10-1AA22R,3520V35A10-1BA22R,3520V35A10-1BB22R,3520V35A10-1BC22R,3520V35A10-1BD22R,3520V-35A-10-1C22R,3520V35A11-1AA22R,3520V35A11-1BA22R,3520V35A11-1BB22R,3520V35A11-1BC22R,3520V35A11-1BD22R,3520V-35A-11-1C22R,3520V35A11-1DD22R,3520V35A12-1AA22R,35

一、型號概述

2520V 是高壓定量雙聯子母葉片泵（25V+20V 組合，軸端 25V、蓋端 20V），屬于中低壓小排量雙聯泵，結構緊湊、噪聲低、效率高。

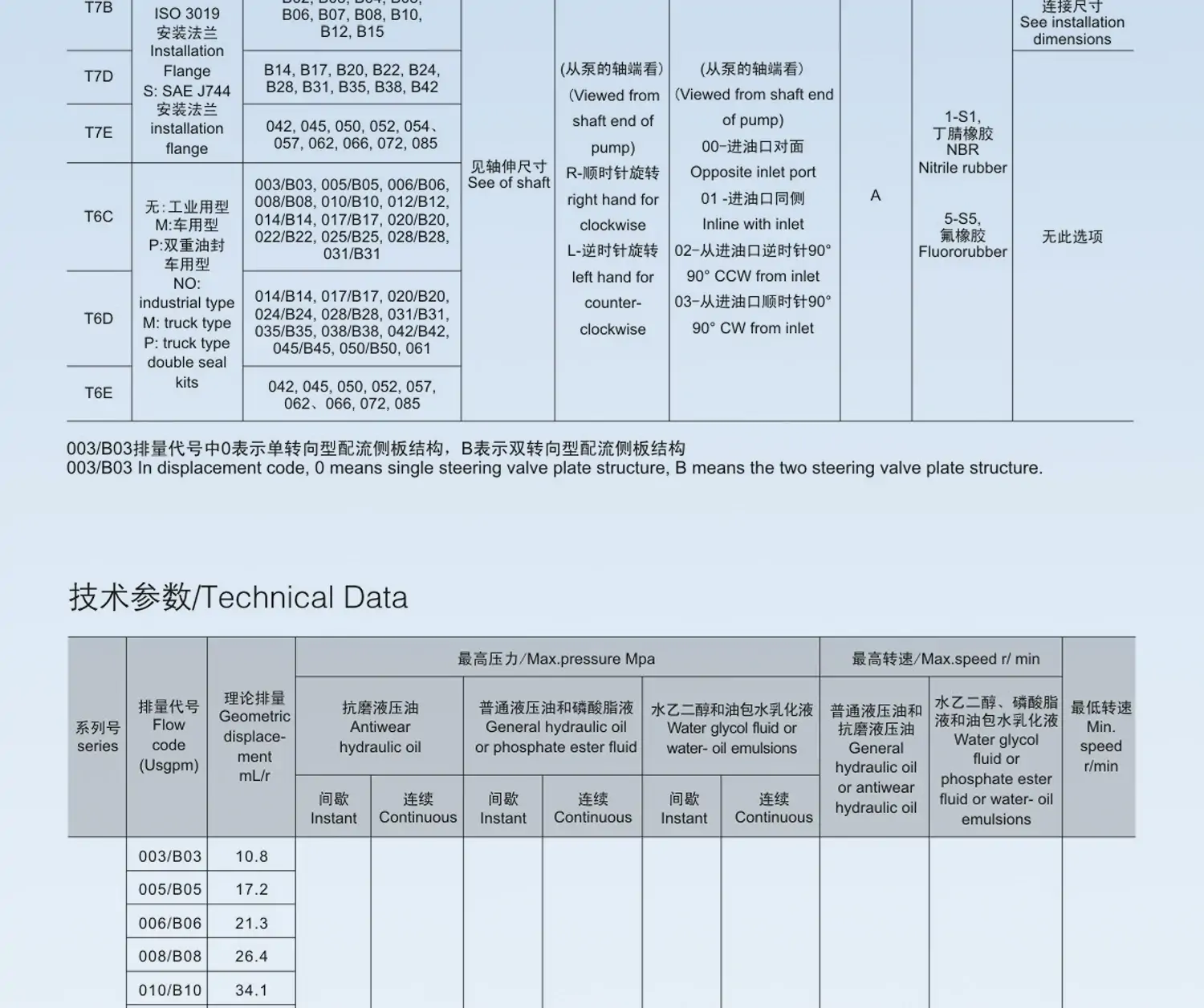

二、型號編碼規則（以常見 2520V-A-1-C-R為例）

• 2520V：系列代號，雙聯葉片泵；前泵 25V 規格、后泵 20V 規格。
• 排量：前泵（25V）常見33～67.7 mL/r；后泵（20V）常見18～45.9 mL/r。
• A：油口形式，SAE 法蘭連接。
• 1：軸伸，標準平鍵軸。
• C：安裝法蘭，標準 SAE。
• R：轉向，右旋（從軸端看順時針）。

三、結構組成

• 泵體：鑄鐵整體雙聯結構，剛性好、散熱佳。
• 雙泵芯（定子 / 轉子 / 子母葉片）前泵（25V）：10 組子母葉片，定子內曲線耐磨合金。后泵（20V）：10 組子母葉片，排量更小、結構同前泵。轉子：雙轉子開 10 槽，葉片底部通壓力油，雙接觸密封。
• 浮動配流盤：雙金屬側板，自動補償軸向間隙，高壓下維持高效率。
• 泵軸：平鍵軸，徑向力平衡，軸承負載低。
• 密封：丁腈橡膠（-20℃～+80℃），可選氟橡膠（高溫）。

四、工作原理

1. 雙泵獨立吸壓油：雙轉子同步旋轉，各自完成吸油→壓油，雙回路獨立供油或合流。
2. 雙作用壓力平衡：每轉一周兩次吸油 / 壓油，徑向力抵消，運行平穩、噪聲低。
3. 子母葉片密封：子片始終貼合定子，雙密封防內泄，容積效率高。
4. 浮動側板補償：軸向間隙自動補償，磨損后仍保高效，壽命長。

五、核心參數（標準工況）

• 幾何排量：前泵33～67.7 mL/r；后泵18～45.9 mL/r。
• 額定壓力：210 bar；峰值240 bar。
• 轉速范圍：600–1800 rpm（推薦 1200–1500 rpm）。
• 容積效率：≥90%（150 bar、1500 rpm）。
• 噪聲：≤65 dB（A）（150 bar、1500 rpm）。
• 介質粘度：10–860 cSt（推薦 32–68 cSt 抗磨液壓油）。
• 工作溫度：?20℃～+80℃（氟橡膠密封可達 + 120℃）。
• 重量：≈25 kg。

六、性能優勢

1. 雙聯小流量：雙泵合流或獨立供油，適配中小流量雙回路。
2. 低噪平穩：10 葉片 + 雙作用平衡，流量脈動?。ā? bar）、噪聲低。
3. 高效耐久：子母葉片 + 浮動側板，內泄小、發熱低、磨損少。
4. 結構緊湊：雙聯集成，體積小、重量輕，安裝空間小。
5. 維護簡便：雙插裝泵芯可現場快速更換，無需拆泵體。
6. 抗污染強：子母結構葉片，抗污染能力優異，適應惡劣工況。

七、典型應用

• 注塑機、壓鑄機（中小流量雙回路、精密控制）。
• 工程機械、農機（中低壓雙系統、重載工況）。
• 冶金、機床（高壓雙動力源、多執行器獨立控制）。

八、使用注意

1. 油液清潔：建議10 μm過濾，避免顆粒磨損定子與葉片。
2. 轉速控制：避免長期低于 600 rpm 或高于 1800 rpm，防止效率下降或過熱。
3. 壓力匹配：長期工作壓力建議≤180 bar，延長泵芯壽命。
4. 安裝同軸度：聯軸器同軸度≤0.1 mm，避免振動與異響。
